65058A-40K Sensortronics

$583.00

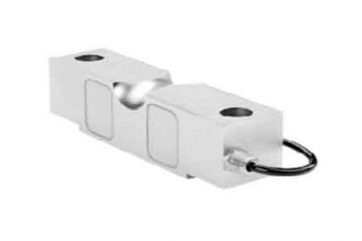

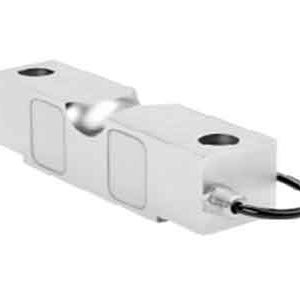

65058A-40K Sensortronics truck shear beam

65058 A load cell is an Interchange for Rice Lake RL75058,Coti Global CG-58,Tedea 415B,Celtron CLB,Artech 70310,Revere 5303. 3 mv/v, 0.05% nonlinearity, 700/700 ohms, 25 ft 4 cond cable, stainless steel, w/welded gauge cover caps, IP67. NTEP 20,000 lb thru 125,000 lb. NTEP 86-046 M IIIL 10,000 div.

In stock (can be backordered)

Description

65058A-40K Sensortronics truck shear beam

65058 A load cell is an Interchange for Rice Lake RL75058,Coti Global CG-58,Tedea 415B,Celtron CLB,Artech 70310,Revere 5303. 3 mv/v, 0.05% nonlinearity, 700/700 ohms, 25 ft 4 cond cable, stainless steel, w/welded gauge cover caps, IP67. NTEP 20,000 lb thru 125,000 lb. NTEP 86-046 M IIIL 10,000 div.
Specification Sheet

Additional information

Weight 16.0 lbs
