TP40-100kg-SS Totalcomp

$199.00

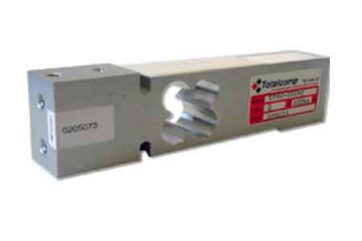

TP40-100kg-SS Totalcomp single point load cell

TP40 stainless steel interchangeable with HBM PW15, SS4 Tedea 1140,Coti Global CG-40-SS,Rice lake RL1140 load cells. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom. 2 mv/v, 0.03% total error, 350/350 ohm, 10 ft 6 cond cable, anodized aluminum, IP67.

In stock (can be backordered)

Description

TP40-100kg-SS Totalcomp single point load cell

TP40 stainless steel interchangeable with HBM PW15, SS4 Tedea 1140,Coti Global CG-40-SS,Rice lake RL1140 load cells. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom. 2 mv/v, 0.03% total error, 350/350 ohm, 10 ft 6 cond cable, anodized aluminum, IP67.
Specification Sheet

Additional information

Weight 4.0 lbs
