1140-F-15 kg Tedea

$258.00

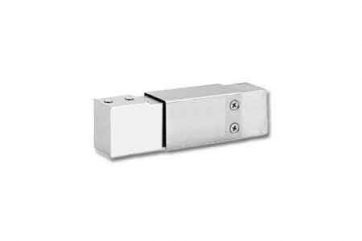

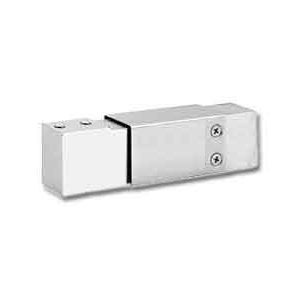

1140-F-15 kg Tedea Huntleigh load cell

These cells have a unique humidity resistant protective coating assures long term stability even under harsh environment and extreme temperatures. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom. 2 mv/v, 0.02% total error, 9 ft 6 cond cable 1040: 415/350 ohm, anodized aluminum. 1140: 380/350 ohm, stainless steel. 1040: NTEP 89-075 S III 5,000 div.

Description

1140-F-15 kg Tedea Huntleigh load cell

These cells have a unique humidity resistant protective coating assures long term stability even under harsh environment and extreme temperatures. Interchangeable cell CG-40-SS,Rice Lake RL1140,HBM PW15AH,Artech SS60510. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom. 2 mv/v, 0.02% total error, 9 ft 6 cond cable 1040: 415/350 ohm, anodized aluminum. 1140: 380/350 ohm, stainless steel. 1040: NTEP 89-075 S III 5,000 div.
Specification Sheet

Additional information

Weight 4.0 lbs
