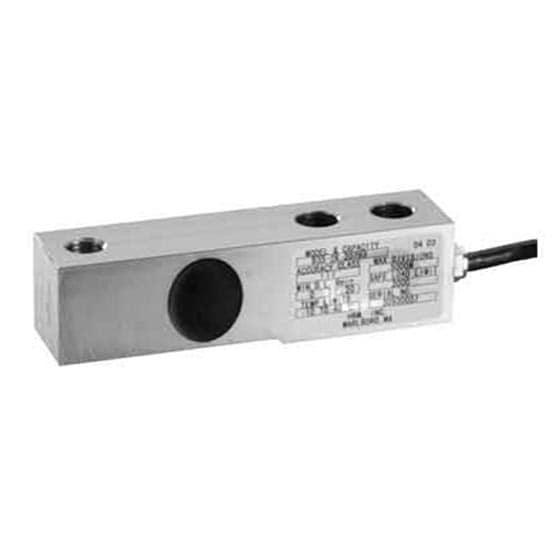

B35-4K-20760 HBM beam load cell

$282.00

B35-4K-20760 HBM beam load cell

B35 HBM load cell is close interchange with Rice Lake RL35023S, RL39123, Coti Global CG-23-SS, Celtron SQB SS, Revere 9123, Artech SS30310, Transcell SBS, Sensortronics 65023-SS and RTI 9123. The height of this cell is 3/8″ shorter than the 65023 or the 9123. 3 mv/v, 0.04% combined error, 350/350 ohm, 20 ft 4 cond cable, stainless steel. NTEP 88-278 III S 3,000 div & III M 5,000 div.

In stock (can be backordered)

SKU: b35-4k-20760-hbm-beam-load-cell Category: Tags: ,

Description

B35-4K-20760 HBM beam load cell

B35 HBM load cell is close interchange with Rice Lake RL35023S, RL39123, Coti Global CG-23-SS, Celtron SQB SS, Revere 9123, Artech SS30310, Transcell SBS, Sensortronics 65023-SS and RTI 9123. The height of this cell is 3/8″ shorter than the 65023 or the 9123. 3 mv/v, 0.04% combined error, 350/350 ohm, 20 ft 4 cond cable, stainless steel. NTEP 88-278 III S 3,000 div & III M 5,000 div.

Specification Sheet

Additional information

Weight 4 lbs
