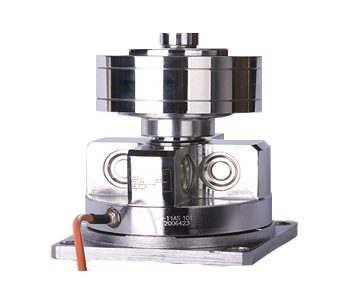

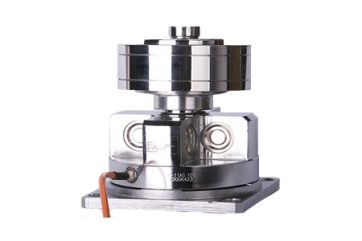

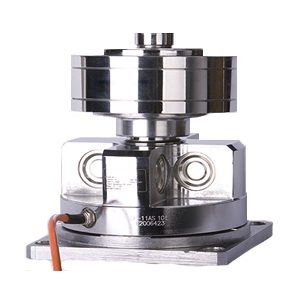

GF-11 65K Compression load cell

$350.00

  • GF-11 65K Compression Load Cell

  • One of its kind patented cross bridge load cell
  • Strong four-direction side force resistance and overload protection
  • Low profile
  • Easy to install & use
  • For electronic truck scale, railroad scale and large capacity hopper scales etc.
  • Specifications: Rated Output (mV/V): 2.00±0.010Nonlinearity: ±0.02%FS Hysteresis: ±0.02%FS Repeatability: ±0.01%FS Creep (30 minutes): ±0.02%FS Zero Balance: ±1.00%FS Temperature Effect on Zero: ±0.02%FS/10°C Temperature Effect on Output: ±0.02%FS/10°C Input Resistance: 765±15Ω Output Resistance: 700±5Ω Insulation Resistance: ≥5000MΩ Excitation Voltage: 10V(DC/AC) Compensated Temperature Range: -10°C ~ 50°C Operating Temperature Range: -20°C ~ 60°C Safe Overload: 120%FS Cable: 5.4×12 m  Cable Color Code: Input: Red (+) Black (-) Output: Green (+) White (-) NTEP 12-046 Accuracy Class III L nMax: 10,000 div. multiple cell Class IIIL
SKU: gf-11-65k-compression-load-cell Category: Tags: ,

Description

  • GF-11 65K Compression Load Cell

  • One of its kind patented cross bridge load cell
  • Strong four-direction side force resistance and overload protection
  • Low profile
  • Easy to install & use
  • For electronic truck scale, railroad scale and large capacity hopper scales etc.
  • Specifications: Rated Output (mV/V): 2.00±0.010Nonlinearity: ±0.02%FS Hysteresis: ±0.02%FS Repeatability: ±0.01%FS Creep (30 minutes): ±0.02%FS Zero Balance: ±1.00%FS Temperature Effect on Zero: ±0.02%FS/10°C Temperature Effect on Output: ±0.02%FS/10°C Input Resistance: 765±15Ω Output Resistance: 700±5Ω Insulation Resistance: ≥5000MΩ Excitation Voltage: 10V(DC/AC) Compensated Temperature Range: -10°C ~ 50°C Operating Temperature Range: -20°C ~ 60°C Safe Overload: 120%FS Cable: 5.4×12 m  Cable Color Code: Input: Red (+) Black (-) Output: Green (+) White (-) NTEP 12-046 Accuracy Class III L nMax: 10,000 div. multiple cell Class IIIL

Additional information

Weight 40 lbs
