DB-75000S Cardinal truck beam

$1,302.00

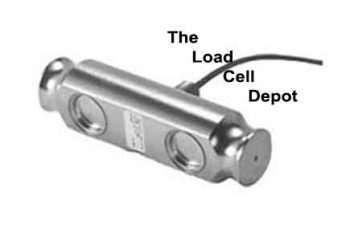

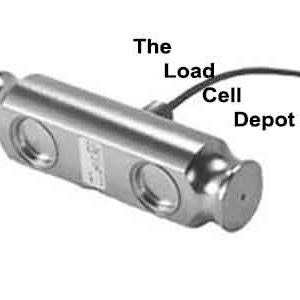

DB-75000S Cardinal truck beam load cell

Original load cell used in Cardinal Truck scales. Interchange for Coti Global CG-DB75000S,Rice Lake RLDB75000S. 2 mv/v, 0.03% non linearity, 790/700 ohms, 35ft integral multiconductor cable, stainless steel. IP67. NTEP 97-133A2 M IIIL 10,000 div.

In stock

Description

DB-75000S Cardinal truck beam load cell

Original load cell used in Cardinal Truck scales. Interchange for Coti Global CG-DB75000S,Rice Lake RLDB75000S. 2 mv/v, 0.03% non linearity, 790/700 ohms, 35ft integral multiconductor cable, stainless steel. IP67. NTEP 97-133A2 M IIIL 10,000 div.

Additional information

Weight 23.0 lbs
