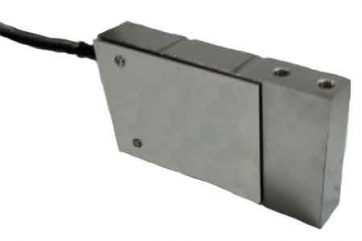

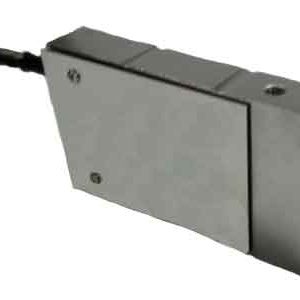

LC651-25 lb SS single point

$203.00

LC651-25 lb SS single point

load cell is interchangeable with G4-TSP51-25lb,Coti Global CG51,Sensortronics 60051,Totalcomp TP51 TSP51, Ramsey 035584 and many others. variation some of the load cells have different color codes for wiring, the LC651 wiring is: Green + excitation; Black – excitation; White + signal; Red – signal. All other parameters are the same as industry standards, output: 2.0000 mv/v, Zero <2% of full load, input res. 385 ohm +/- 15 ohms, output res. 350 ohm +/-3 ohms. Insulation >2,000 Meg-Ohms, recommended excitation 10 VDC/AC with maximum excitation 20 VDC/AC. Cable is 20ft 4 cond. plus shield. Material Stainless steel potted with cover plate over gauges.

Dim. L 4 5/8″ x W 1/2″ x H 2 1/2″

In stock (can be backordered)

Description

LC651-25 lb SS single point

load cell is interchangeable with G4-TSP51-25lb,Coti Global CG51,Sensortronics 60051,Totalcomp TP51 TSP51, Ramsey 035584 and many others. variation some of the load cells have different color codes for wiring, the LC651 wiring is: Green + excitation; Black – excitation; White + signal; Red – signal. All other parameters are the same as industry standards, output: 2.0000 mv/v, Zero <2% of full load, input res. 385 ohm +/- 15 ohms, output res. 350 ohm +/-3 ohms. Insulation >2,000 Meg-Ohms, recommended excitation 10 VDC/AC with maximum excitation 20 VDC/AC. Cable is 20ft 4 cond. plus shield. Material Stainless steel potted with cover plate over gauges.

Dim. L 4 5/8″ x W 1/2″ x H 2 1/2″

Additional information

Weight 2.0 lbs
