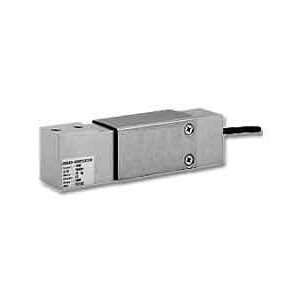

1040-I-15kg Tedea load cell

$122.85

1040-I-15kg Tedea load cell

1040-I-15kg Tedea load cell, interchangeable with Rice Lake RL1040,Coti Global CG-40,Celtron LOC,Transcell FAS,HBM SP4. These cells have a unique humidity resistant protective coating assures long term stability even under harsh environment and extreme temperatures. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom.2 mv/v, 0.02% total error, 9 ft 6 cond cable 1040: 415/350 ohm, anodized aluminum. 1140: 380/350 ohm, stainless steel. 1040: NTEP 89-075 S III 5,000 div.

In stock (can be backordered)

Description

1040-I-15kg Tedea load cell

1040-I-15kg Tedea load cell, interchangeable with Rice Lake RL1040,Coti Global CG-40,Celtron LOC,Transcell FAS,HBM SP4. These cells have a unique humidity resistant protective coating assures long term stability even under harsh environment and extreme temperatures. Mounting screws are 1/4-20 UNC(coarse) with 3/4″ spacing on both top and bottom.2 mv/v, 0.02% total error, 9 ft 6 cond cable 1040: 415/350 ohm, anodized aluminum. 1140: 380/350 ohm, stainless steel. 1040: NTEP 89-075 S III 5,000 div.
Specification Sheet

Additional information

Weight 3 lbs
