Description

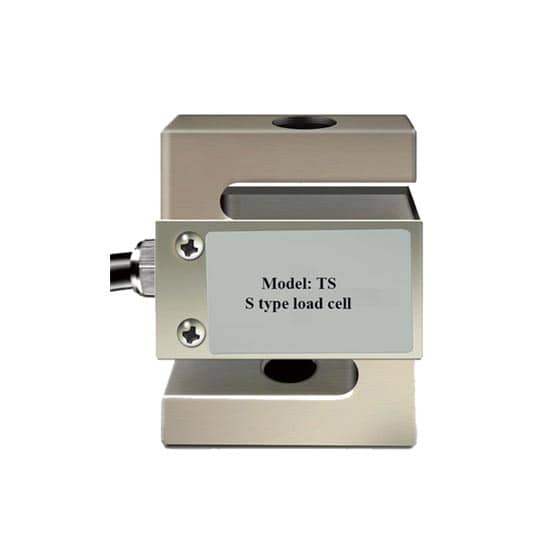

TS-25 Totalcomp Load Cell
Bi-directional for both tension & compression loads. 3 mv/v, 0.03% nonlinearity, 380/350 ohm, 20 ft 4 cond cable, nickel plated steel, IP67. NTEP 93-028 S/M III 3,000 div & IIIL 10,000 div. 1/4-28 UNF thread, height 2.50″ interchangeable with many other “S” type load cells, Artech 20210, COTI CGSB CGSB-1, Revere 363, Vishay 60001A, PA6110/6210, Anyload 101NH.
Specification Sheet
