Description

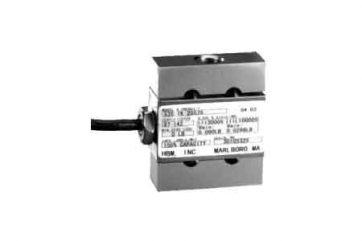

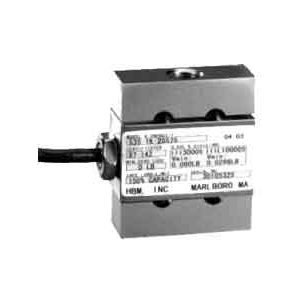

S35-2K-20575 HBM S type load cell
S35-2K-20575 HBM S type load cell 3mv/v output, 350 ohm bridge environmentally sealed to IP65 Stainless Steel construction. Load cell also made for Emery Winslow as a SSM-A5. FM and NTEP 97-142 approved Class III 3000 div. & S 10000 div. Rated Excitation 10V DC (15V max.) combined Error 0.03%, Insulation resistance 10,000 Megaohm, Deflection at capacity 0.010 in/0.25 mm.
Specification Sheet
