Floor scale kit TFK-4K

$695.50

Floor scale kit TFK-4K

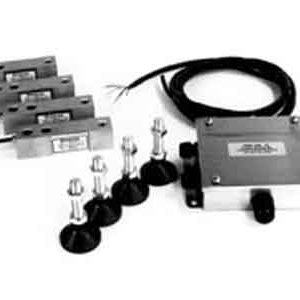

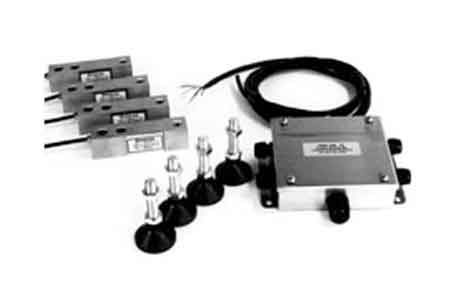

TFK-4K has cell capacity: 4,000 lb, your Base capacity: 8,000 lb. Build your own floor scale with quality components. Each floor scale kit includes the following.

1. (4) TSB single point beam load cells, Nickel plated steel NTEP (from 1K – 10K cell capacity)

2. (4) alloy steel swivel beam feet

3. (1) GS-JB-4-SS compact summing junction box, Stainless Steel NEMA 4 enclosure with signal trim card inside

4. 20ft 6 conductor home run cable (to your indicator or instrument or pick one from our Indicator or process collection)

In stock (can be backordered)

SKU: floor-scale-kit-tfk-4k Category: Tag:

Description

Floor scale kit TFK-4K

TFK-4K has cell capacity: 4,000 lb, your Base capacity: 8,000 lb. Build your own floor scale with quality components. Each floor scale kit includes the following.

1. (4) TSB single point beam load cells, Nickel plated steel NTEP (from 1K – 10K cell capacity)

2. (4) alloy steel swivel beam feet

3. (1) GS-JB-4-SS compact summing junction box, Stainless Steel NEMA 4 enclosure with signal trim card inside

4. 20ft 6 conductor home run cable (to your indicator or instrument or pick one from our Indicator or process collection)
Specification Sheet

Additional information

Weight 18.0 lbs
