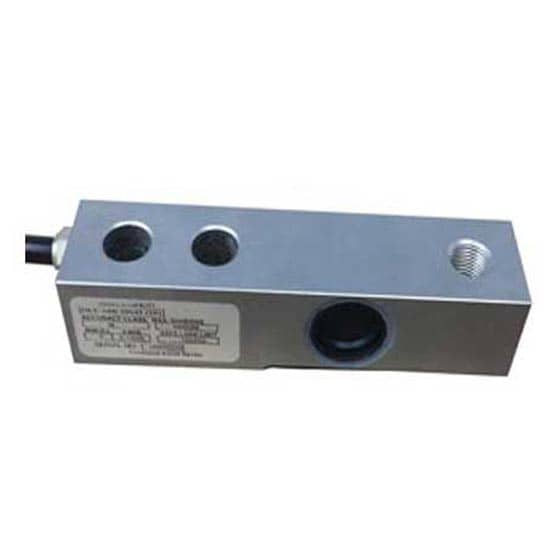

BLC-250-10716 beam load cell

$293.30

BLC-250-10716 Beam Load cell

BLC HBM replacement load cell, interchanges with Rice Lake RLBLC, Coti Global CG-BLC-T, Toledo 084759-020, HBM BLC with threaded load hole.Matched outputs. Nameplate on cell shows 1.5 mv/v at half capacity. 3 mv/v, 0.02% nonlinearity, 1000/1000 ohm, 17-4 stainless steel. 10 ft 4 cond cable – 500 lb, 1K, 2.5K, 4K ; 20 ft 4 cond cable – 5K, 10K.

In stock (can be backordered)

Description

BLC-250-10716 Beam Load cell

BLC HBM replacement load cell, interchanges with Rice Lake RLBLC, Coti Global CG-BLC-T, Toledo 084759-020, HBM BLC with threaded load hole.Matched outputs. Nameplate on cell shows 1.5 mv/v at half capacity. 3 mv/v, 0.02% nonlinearity, 1000/1000 ohm, 17-4 stainless steel. 10 ft 4 cond cable – 500 lb, 1K, 2.5K, 4K ; 20 ft 4 cond cable – 5K, 10K.

Specification Sheet

BLC_spec

Additional information

Weight 3 lbs
