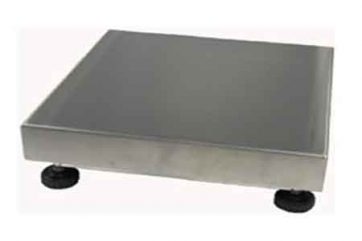

TBT-2424-250 scale platform base

$355.00

TBT-2424-250 scale platform base

Size 24″x24″ capacity 250 lb. Painted steel tubular welded frame and heavy gauge Stainless Steel platter, adjustable rubber foot and frame has bubble level to level the platform bases at site. Scale platform bases including aluminum load cells up to 16″x16″ size and Nickel plated steel load cells for the 24″x24″ platform bases. All load cells and load cell model numbers listed in the specification sheet PDF file. Integral overload protection is provided for both static and dynamic overloads. 2mv/v 405/350 ohms, load cell with 9 ft 6 cond. cable. NTEP 14-050 class III 5,000 div.

In stock (can be backordered)

Description

TBT-2424-250 scale platform base

Size 24″x24″ capacity 250 lb. Painted steel tubular welded frame and heavy gauge Stainless Steel platter, adjustable rubber foot and frame has bubble level to level the platform bases at site. Scale platform bases including aluminum load cells up to 16″x16″ size and Nickel plated steel load cells for the 24″x24″ platform bases. All load cells and load cell model numbers listed in the specification sheet PDF file. Integral overload protection is provided for both static and dynamic overloads. 2mv/v 405/350 ohms, load cell with 9 ft 6 cond. cable. NTEP 14-050 class III 5,000 div.
Specification Sheet

Additional information

Weight 85.0 lbs
