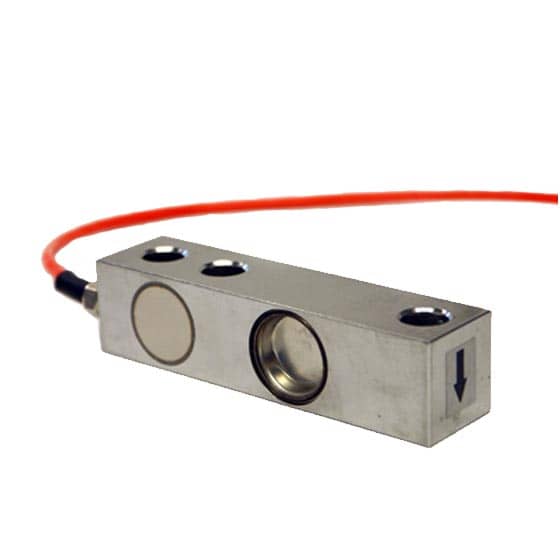

DSB-20K-SSH Beam Load Cell

$305.00

DSB-20K-SSH Beam Load Cell

Interchangeable with many industry wide known load cells, such as 65023 Vishay Sensortronics, Coti CG-23, CG-23SS, Revere model 5123/9123, HBM H35/B35, Tedea 3410, PA6240W/PA6140/PA6240. load cell is 3mv/v, 0.02% nonlinearity, 390/350 ohm, 20ft 4 conductor highly visible cable. DSB-SSH is a Stainless Steel Hermetic sealed beam type load cell. with 1-14 UNF thread at load end.

Specification sheet

In stock (can be backordered)

Description

DSB-20K-SSH Beam Load Cell

Interchangeable with many industry wide known load cells, such as 65023 Vishay Sensortronics, Coti CG-23, CG-23SS, Revere model 5123/9123, HBM H35/B35, Tedea 3410, PA6240W/PA6140/PA6240. load cell is 3mv/v, 0.02% nonlinearity, 390/350 ohm, 20ft 4 conductor highly visible cable. DSB-SSH is a Stainless Steel Hermetic sealed beam type load cell. with 1-14 UNF thread at load end.

Specification sheet

Additional information

Weight 10 lbs
